Volume Fraction

Volume fraction is the material budget for design optimization. It specifies what proportion of the design space the optimizer is allowed to fill with solid material. A volume fraction of 0.3 means the final design should use approximately 30% of the available design space volume — the remaining 70% will be void.

Why It Matters

Volume fraction is one of the most influential parameters in the optimization. It directly controls:

• How much material the mechanism uses (weight, cost)
• How complex the topology is (more material = simpler, less material = more creative)
• How the optimizer balances stiffness and flexibility (less material forces harder trade-offs)
• The character of the resulting mechanism (thin elegant flexures vs. bulky robust structures)

Unlike preserve placement (which changes the problem), volume fraction changes how aggressively the optimizer solves it. The same problem at different volume fractions produces the same type of mechanism with different proportions.

How It Works

The Constraint

Volume fraction appears in the optimization as a constraint:

Sum of all element densities × element volume ≤ V_f × V_total

Where:

• V_f is the volume fraction (0 to 1)
• V_total is the total volume of active (non-passive) elements in the design space
• The sum is over all active elements (not preserves or voids)

The optimizer distributes material to maximize the objective (output displacement) while keeping the total material volume at or below the budget. In practice, the constraint is almost always active — the optimizer uses exactly the allowed amount of material, not less.

note

Preserve regions (locked to solid) do not count against the volume fraction budget. The constraint applies only to active elements in the design space. If your design space is 100 elements and preserves occupy 20 of them, the volume fraction applies to the remaining 80 elements.

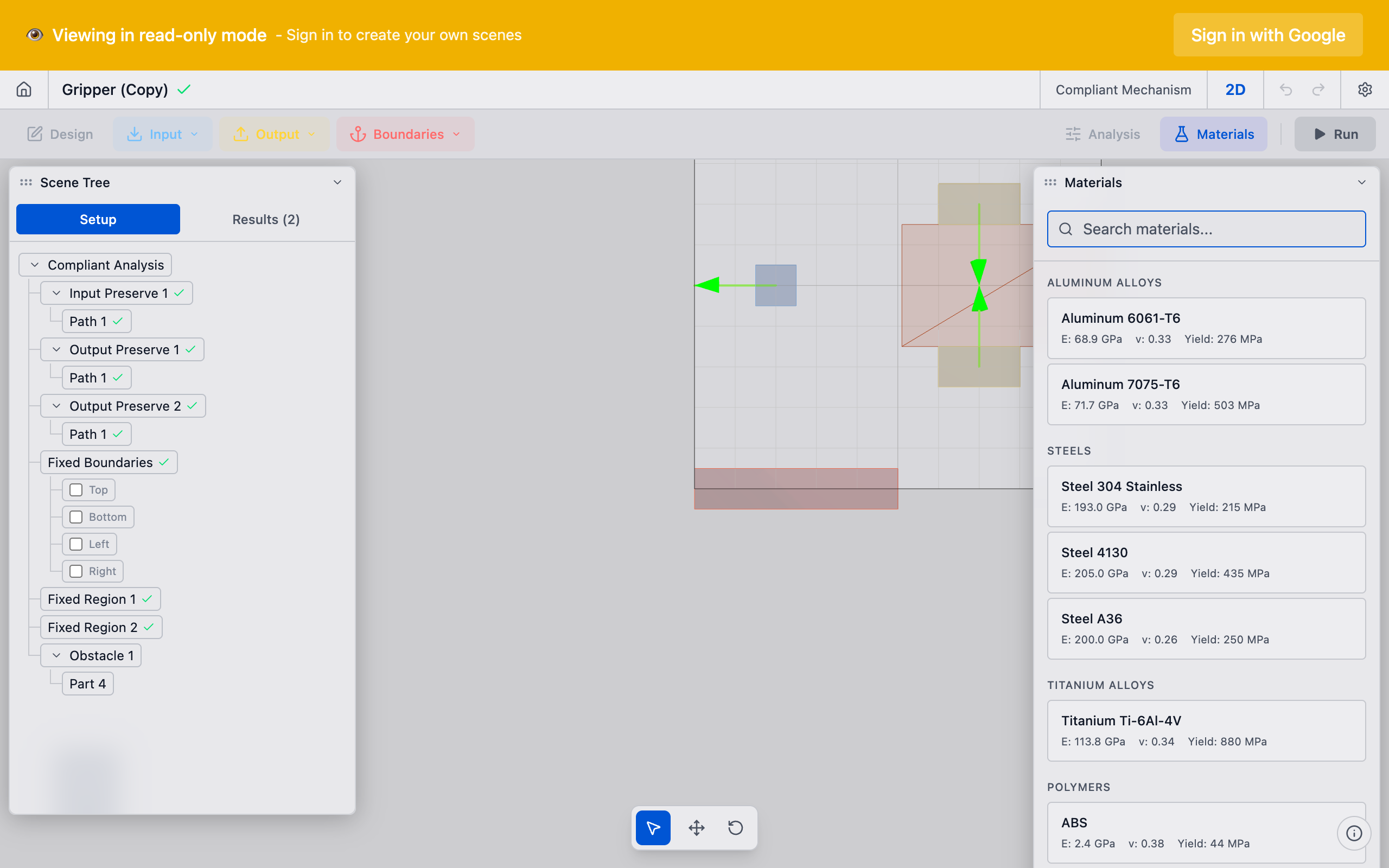

What Different Values Produce

The volume fraction dramatically affects the resulting topology:

V_f = 0.1 (10%)

• Extremely sparse designs
• Very thin structural members
• Only the most critical load paths survive
• Risk of disconnected or impractical topologies
• Use only for lightweight optimization where minimal material is essential

V_f = 0.2 (20%)

• Lean designs with well-defined load paths
• Thin flexure regions and slender structural members
• Good for compliant mechanisms where flexibility is paramount
• Requires adequate mesh resolution to resolve thin features

V_f = 0.3 (30%) — Default

• Balanced material usage
• Clear load paths with reasonable member thickness
• The most commonly used value for compliant mechanism design
• Good trade-off between mechanism performance and structural robustness

V_f = 0.4 (40%)

• Moderately dense designs
• Thicker structural members, more redundant load paths
• The mechanism may be stiffer than necessary
• Use when structural robustness is more important than maximum flexibility

V_f = 0.5 (50%)

• Dense designs using half the available space
• Multiple redundant load paths, thick members
• The mechanism is stiff and robust but less flexible
• Diminishing returns on mechanism performance above this level

V_f = 0.7+ (70%+)

• Very dense, approaching a solid block
• The optimizer has so much material that it struggles to create meaningful void regions
• Rarely useful for compliant mechanism design
• May be appropriate for stiffness-dominated problems

tip

For most compliant mechanism problems, start with V_f = 0.3. This provides enough material for the optimizer to create efficient load paths while being restrictive enough to produce interesting topologies. Adjust up or down based on the results.

Practical Guidance

Choosing the Right Value

Consider these factors when setting volume fraction:

Weight requirements: if the mechanism has a weight budget, compute the maximum volume fraction from: V_f = weight_budget / (density * design_space_volume).

Manufacturing constraints: very low volume fractions produce thin features that may be difficult to manufacture. Ensure the thinnest members are above your manufacturing process's minimum feature size.

Stiffness requirements: if the mechanism must transmit significant force, higher volume fractions provide more structural material. For flexible, motion-amplifying mechanisms, lower fractions work better.

Iteration speed: lower volume fractions sometimes cause the optimizer to take more iterations to converge because the design space is more constrained. If you need quick results, start with a moderate fraction (0.3-0.4).

Volume Fraction and Mesh Resolution

Volume fraction and mesh resolution interact:

• At coarse resolution with low volume fraction, the optimizer may produce designs with members that are only 1-2 elements thick. These are unreliable — the mesh cannot adequately represent such thin features.
• Rule of thumb: the minimum feature size should be at least 3 elements wide. If V_f is low and the mesh is coarse, either increase the mesh resolution or increase the volume fraction.

Volume Fraction vs. K_p_max

Volume fraction and K_p_max both influence the mechanism's stiffness-flexibility trade-off but in different ways:

Parameter	Controls	Mechanism
Volume fraction	How much material is available	Constrains the material budget
K_p_max	How stiff the mechanism needs to be	Constrains the stiffness at the output

Lowering V_f forces the optimizer to be more selective about where to place material. Raising K_p_max forces the optimizer to make the mechanism stiffer. Both tend to produce more defined topologies, but for different mechanical reasons.

Technical Details

How the Constraint Works

The volume constraint is enforced as a global inequality constraint in the optimizer. At every iteration, the solver ensures that the total material density across all active cells does not exceed the specified volume fraction budget. Each cell contributes equally per unit volume to the constraint, regardless of its position or the current state of the design.

Convergence Behavior

The volume constraint is typically satisfied within the first few iterations. The optimizer quickly adjusts the overall density level to meet the budget, then spends the remaining iterations redistributing material for optimal performance. You can observe this in the convergence plot: the volume fraction curve flattens early, while the design performance continues to improve.

Preserve Volume Exclusion

The volume fraction calculation excludes passive elements:

• Elements in preserve regions (density locked to 1) are not counted in the constraint
• Elements in void regions (density locked to 0) are not counted in the constraint
• Only active elements (free material values) participate in the constraint

This means a design with large preserves has a smaller effective design space. A V_f of 0.3 applied to a smaller active region uses proportionally less total material.

Common Mistakes

Setting volume fraction too low: results in disconnected or degenerate topologies. The optimizer cannot create viable load paths with insufficient material. If the result looks broken, try increasing V_f.

Setting volume fraction too high: wastes material and produces uninteresting topologies. The optimizer fills most of the space with solid material, and the result resembles the original design space rather than an optimized mechanism.

Ignoring preserve volume: if preserves occupy 40% of the design space and you set V_f = 0.3, only 30% of the remaining 60% is available for the optimized topology. The effective fill of the total region is much less than 0.3.

Comparing results at different volume fractions without context: a V_f = 0.2 design is not "better" than a V_f = 0.4 design just because it uses less material. They solve different problems — the lighter design sacrifices stiffness for weight reduction.
